PORT AIS
Port Automatic Identification System, namely an AIS receiver system installed in the port area to monitor ship movements in real-time via AIS (Automatic Identification System) signals.
BASE AIS
Base AIS (short for AIS Base Station) is an AIS signal receiving and transmitting device installed on land (coast, port, or tower) to monitor ship traffic in real-time via VHF frequency.
Shore AIS
Shore AIS is a term that refers to an AIS Station installed on land, especially in coastal areas, ports, or guard towers. This name is a variation of AIS Shore Station or Shore-based AIS. Shore AIS is included in the Terrestrial AIS (T-AIS) system — meaning, the AIS data is collected from land, not from satellites.
PORT AIS STATION
AIS-based ship monitoring with AIS Receiver Station and online monitoring system. Monitor ship position and ship movement based on AIS data sent by the ship.
Antenna with Impedance ±50 Ω
Can receive AIS data without any limitation on the number of vessels
AIS VHF Frequency 161.975 MHz - 162.025 MHz
Can be integrated with web servers or other devices/applications
Can receive NMEA data from ship transmitted signals
Can be integrated with the Ministry of Transportation's I-Motion
Easy to connect with computer devices
Output: IP Public disertai Port Automatic Identifi c a tion System (AIS)
CCTV MONITORING SYSTEM
Visually monitor the movement of ships, people or other objects using CCTV cameras installed in ports or on ships.
Resolution: HD Camera Daynight Max Resolution: 2560 (H) × 1440 (V)
Compression / Kompresi :H.265, H.264, MJPEG
Can be used day and night with DarkFighter Technology
Media Record CCTV can store data for 14 days
Range 4.6 NM on a 5m tall ship
Can be installed on the dock with Outdoor Environment: –30 °C to +70 °C, IP67
Lens Focal Length 5.9 to 188.8 mm, 32x optical
Output: link Real Time Streaming Protocol (RST

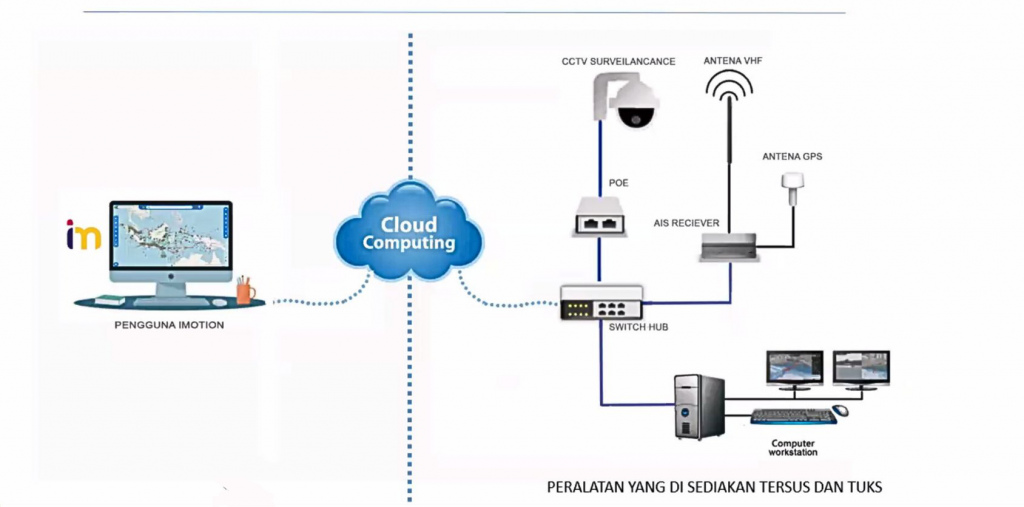

Skema Integrasi
Badan usha pelabuhan (BUP)/ Terminal khusus (TERSUS/ Terminal untuk pelabuhan sendiri
Lampiran surat edaran direktur jendral perhubungan laut nomer SE-DJPL 48 Tahun 2024 tentang sepesifikasi teknis kamera closed circuit television (CCTV) dan sistem penerima automatic identifications system (AIS RECEVER) di terminal khusus dan terminal untuk kepentingan sendiri.
